CASE PACKER
Our technological starting point is the Case Packer. It is widely known and highly acclaimed throughout the industry. High-speed stability and significant cost reduction are what this machine is known for. This is just one of the machines we offer.
TOP LOADING CASE PACKER
Our Balcony-Type Top-Loading Case Packer, KTB-100 is simple, easy to change-over, and maintain.X-Z-robot loads workpieces into a case one row at a time (just like manual loading). This machine is designed to handle various types of workpieces.

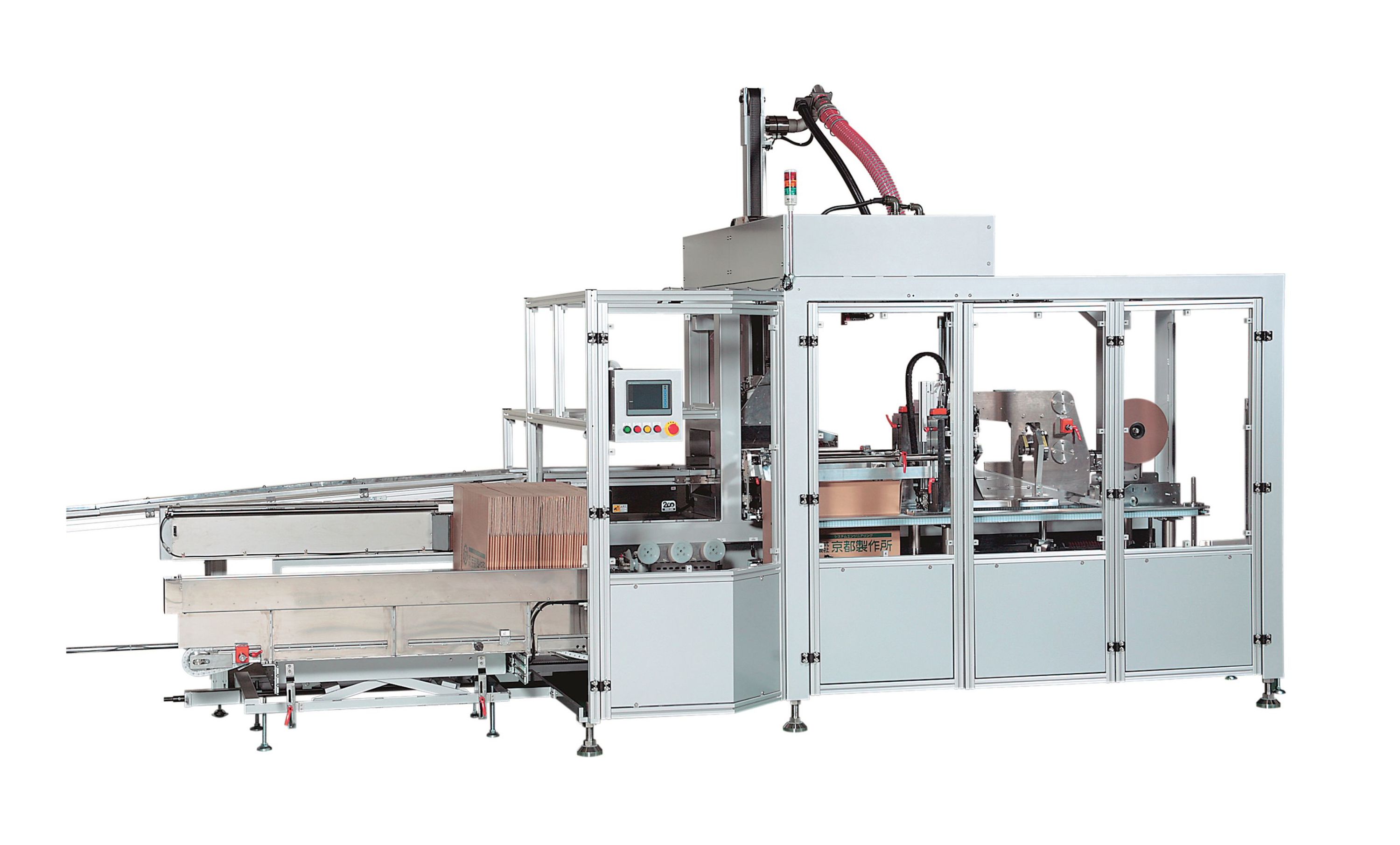

KTB-100
| Type | KTB-100 |
| Capacity | 15 cases/min. |
| Machine Size (unit:mm) |
4,620×1,950×1,860(height) |
| Case Dimensions (unit:mm) |
 L=200～600W=150～400 H=130～350 L+W＜900 |
KTB-100
| Type | KTB-100 |
| Capacity | 15 cases/min. |
| Machine Size (unit:mm) |
4,620× 1,950× 1,860(height) |
| Case Dimensions (unit:mm) |
L=200～600 W=150～400 H=130～350 L+W＜900 |

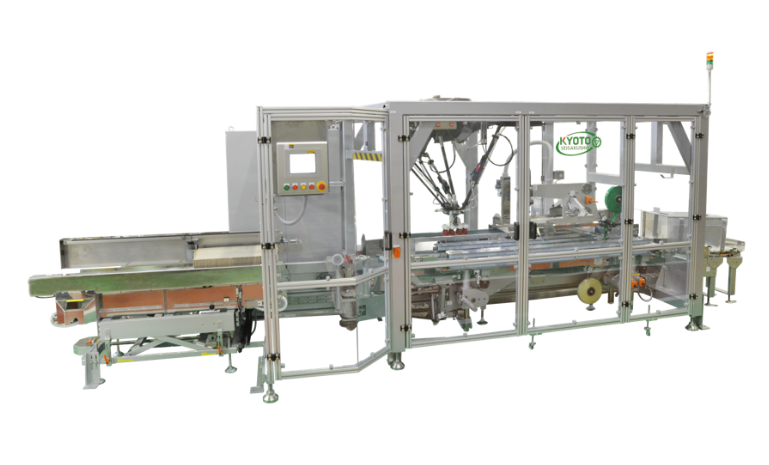

KTB-100P
| Type | KTB-100P |
| Capacity | 15 cases/min. |
| Machine Size (unit:mm) |
5,170×1,950×2,045(height) |
| Case Dimensions (unit:mm) |
L=200～600 W=150～400 H=130～350 L+W＜900 |
KTB-100P
| Type | KTB-100P |
| Capacity | 15 cases/min. |
| Machine Size (unit:mm) |
5,170× 1,950× 2,045(height) |
| Case Dimensions (unit:mm) |
L=200～600 W=150～400 H=130～350 L+W＜900 |
SIDE-LOADING SETUP CASE PACKER
Our “state-of-the-art” Set-Up Case Packer is designed to use huge field data and the latest technology. Customers like this machine for this simplicity, low cost, and its ability to handle both adhesive tape and hot melt with its small foot print design.

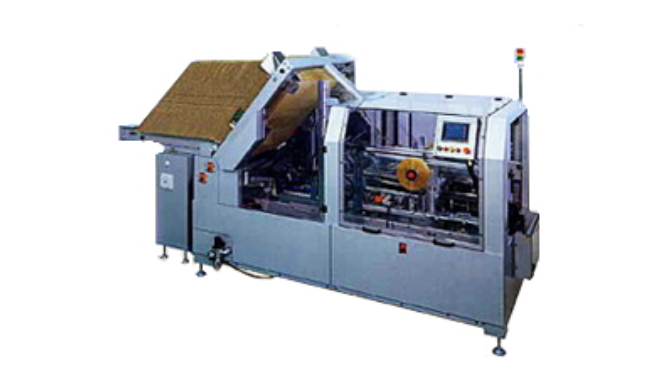

KSC-4000
| Type | KSC-4000 |
| Capacity | 8 cases/min. |
| Machine Size (unit:mm) |
3,660×2,260×1,880(height) |
| Case Dimensions (unit:mm) |
L=200～450 W=150～400 H=150～450 |

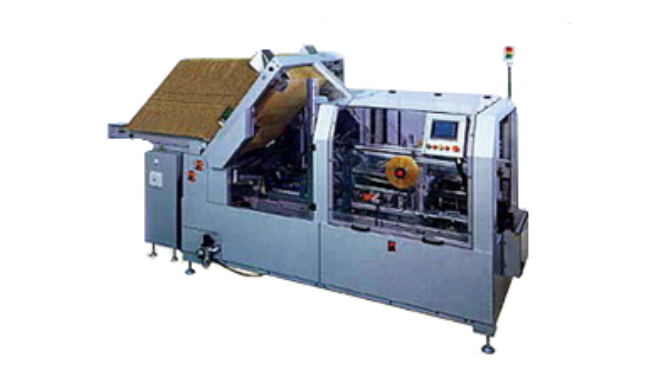

KSC-4000
| Type | KSC-4000 |
| Capacity | 8 cases/min. |
| Machine Size (unit:mm) |
3,660× 2,260× 1,880(height) |
| Case Dimensions (unit:mm) |
L=200～450 W=150～400 H=150～450 |
SIDE-LOADING WRAPAROUND CASE PACKER
Sophisticated Simple Design Machine handles a multitude of shapes/size workpieces. It has a stable case pick, case forming and compact footprint for a fast and easy changeover.

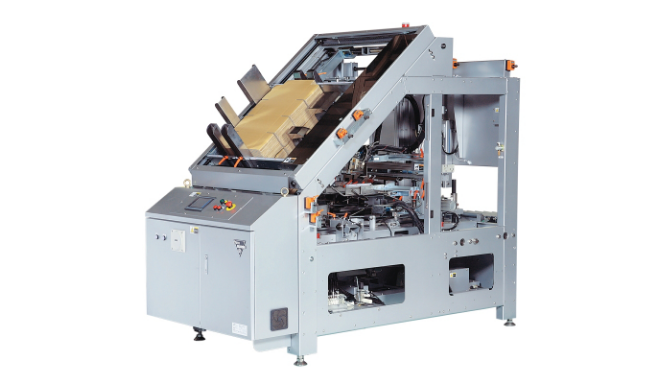

SPC-5000
| Type | SPC-5000 |
| Capacity | 12 cases/min. |
| Machine Size (unit:mm) |
2,420×1,983×2,300(height) |
| Case Dimensions (unit:mm) |
 L=150～450W=80～350 H=150～475 |
SPC-5000
| Type | SPC-5000 |
| Capacity | 12 cases/min. |
| Machine Size (unit:mm) |
2,420× 1,983× 2,300(height) |
| Case Dimensions (unit:mm) |
L=150～450 W=80～350 H=150～475 |
Our specifications are subject to change without notice due to continual improvements.
