CARTONER
VARIO SERIES
VARIO Series offer balcony-type cartoners suitable for wide range of industries from Pharmaceutical, Cosmetics to Food & Beverage. Available in continuous and intermittent motion. The machine has two separated units; motor unit and product transfer unit, which meets GMP and FDA.
The machine is operator-friendly, easy to clean and maintain.

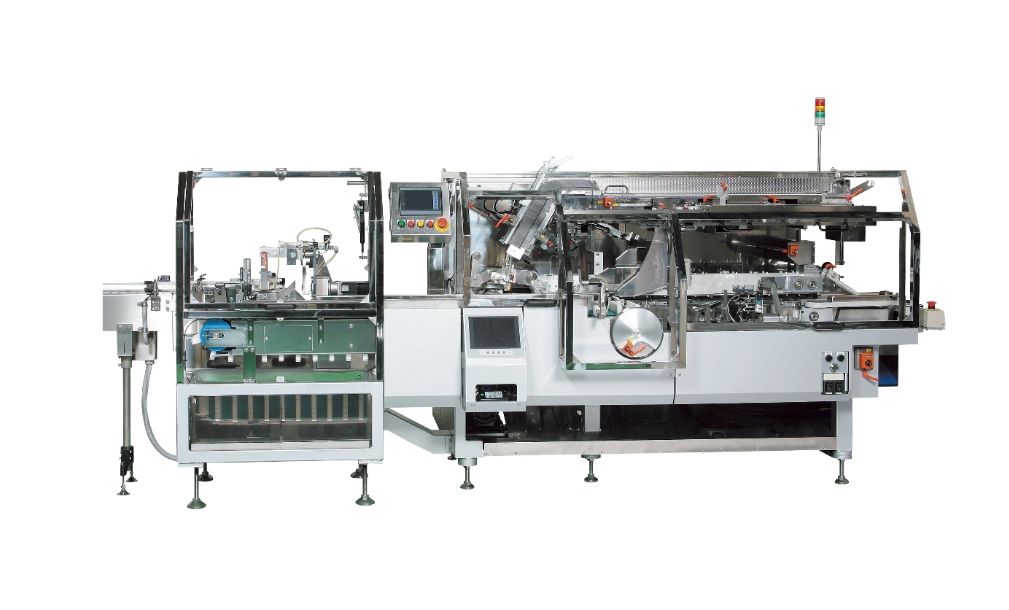

VARIO-SiFⅡ
| Type | VARIO-SiFⅡ |
| Capacity | 100 cartons/min. |
| Machine Size (unit: mm) |
3,970×1,630×1,455(height) |
| Case Dimensions (unit: mm) |
 L=20～105W=15～100 H=60～180 |
VARIO-SiFⅡ
| Type | VARIO-SiFⅡ |
| Capacity | 100 cartons/min. |
| Machine Size (unit: mm) |
3,970× 1,630× 1,455(height) |
| Case Dimensions (unit: mm) |
L=20～105 W=15～100 H=60～180 |

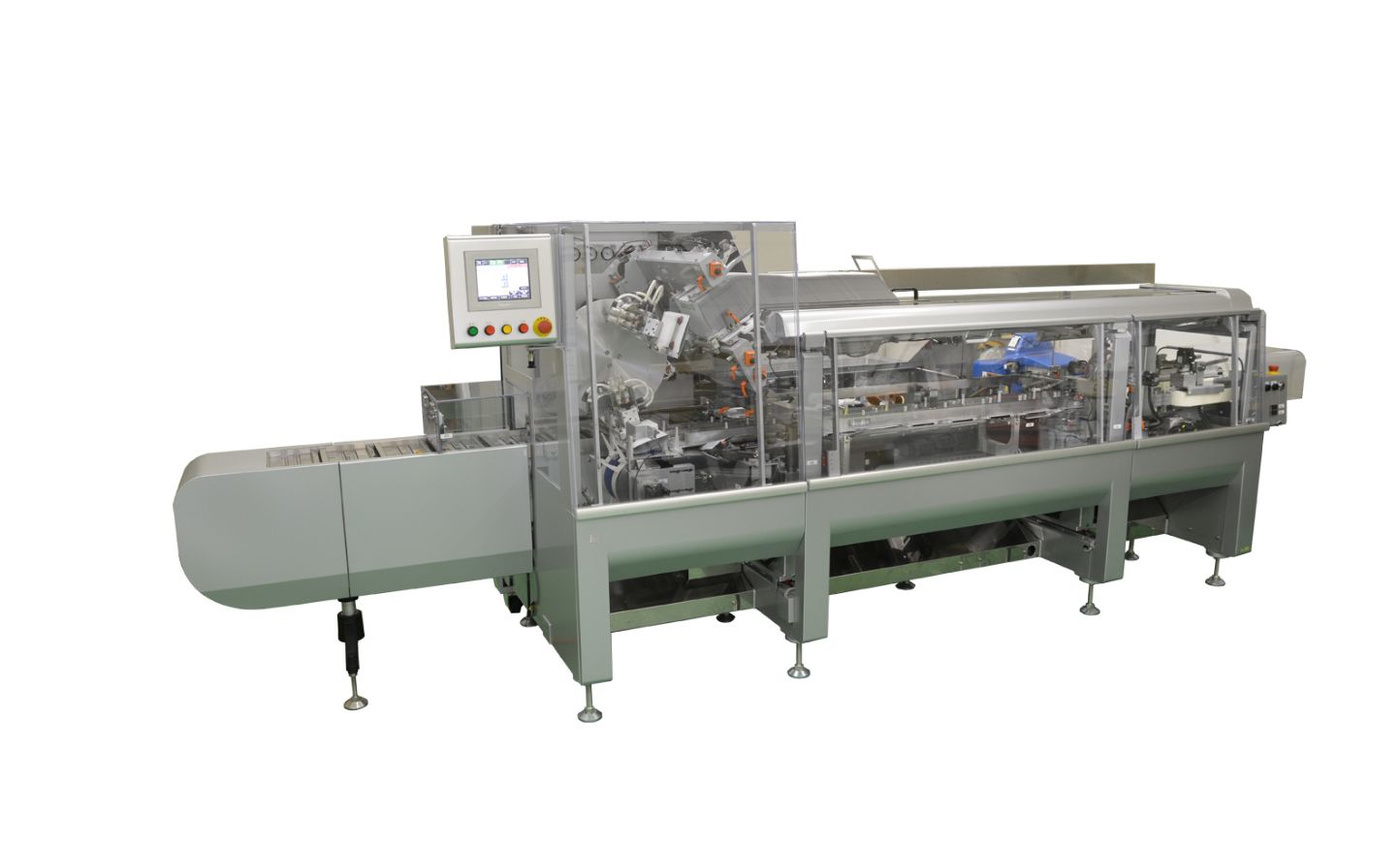

VARIO-LiF
| Type | VARIO-LiF |
| Capacity | 80 cartons/min. |
| Machine Size (unit:mm) |
5,323×1,800×1,550(height) |
| Case Dimensions (unit:mm) |
 L=40～195W=15～140 H=60～180 |
VARIO-LiF
| Type | VARIO-LiF |
| Capacity | 80 cartons/min. |
| Machine Size (unit:mm) |
5,323× 1,800× 1,550(height) |
| Case Dimensions (unit:mm) |
L=40～195 W=15～140 H=60～180 |

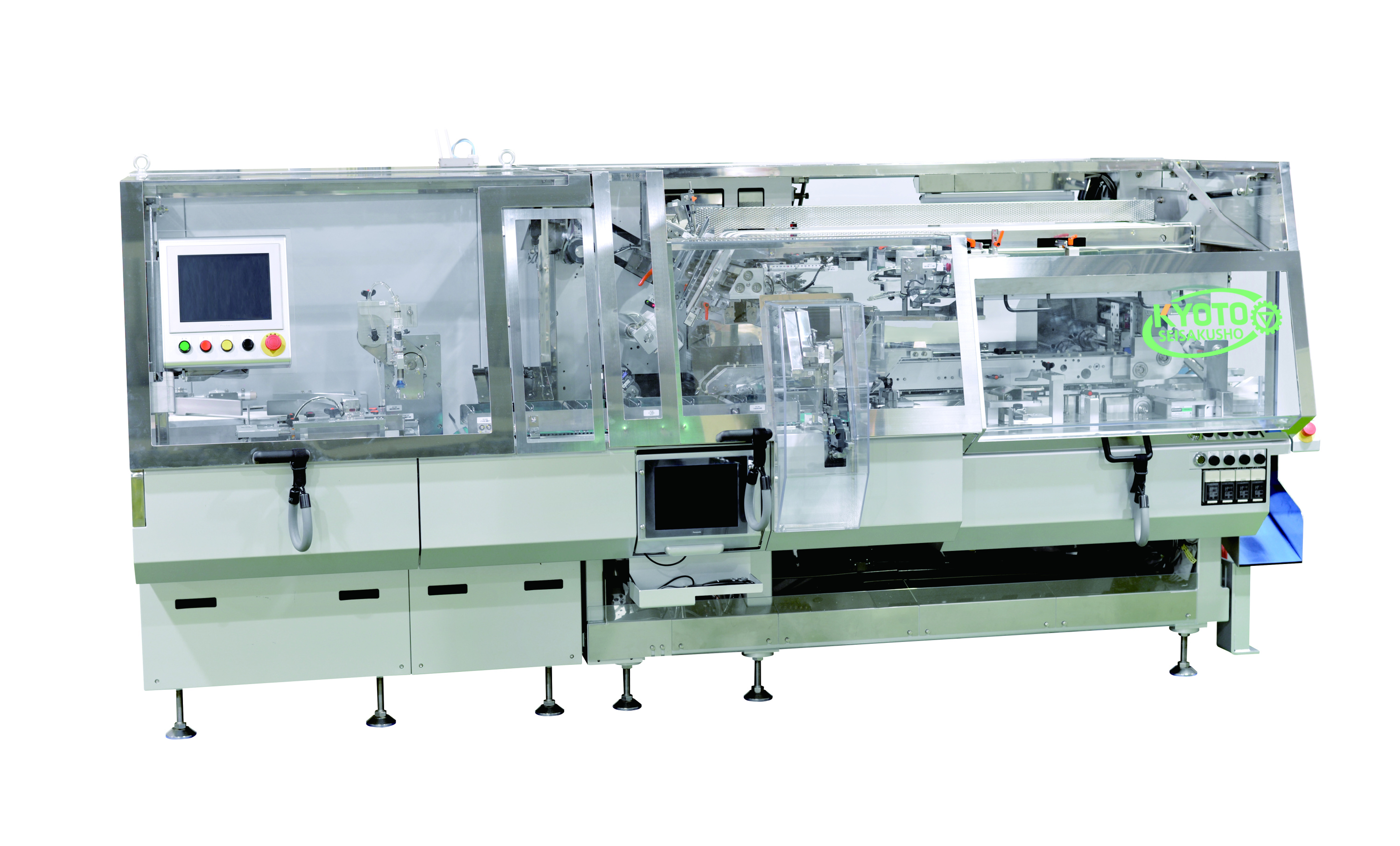

VARIO-C4.5
| Type | VARIO-C4.5 |
| Capacity | 300 cartons/min. |
| Machine Size (unit:mm) |
5,560×1,530×1,450(height) |
| Case Dimensions (unit:mm) |
L=25～85 W=10～75 H=70～180 |
VARIO-C4.5
| Type | VARIO-C4.5 |
| Capacity | 300 cartons/min. |
| Machine Size (unit:mm) |
5,560× 1,530× 1,450(height) |
| Case Dimensions (unit:mm) |
L=25～85 W=10～75 H=70～180 |
KC SERIES
Our “state-of-the-art” Continuous Motion Cartoner is known for its thoroughly simplified changeover and maximum productivity. This machine handles a multitude of shapes/size flaps while achieving the highest efficiency and stability with their unique carton pick and forming method.

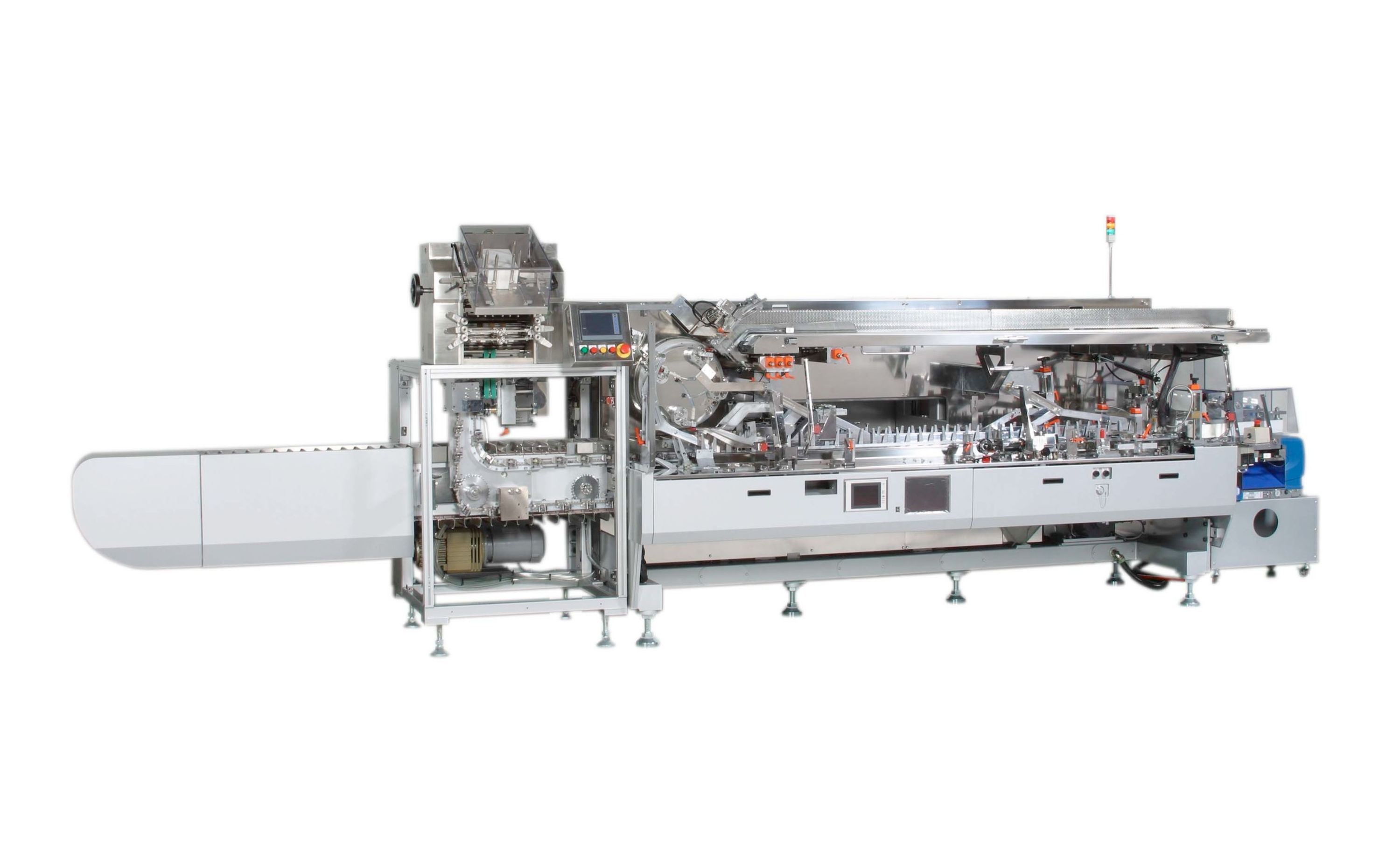

KC-100FⅡ
| Type | KC-100FⅡ |
| Capacity | 240 cartons/min. |
| Machine Size (unit:mm) |
3,510×1,474×1,600(height) |
KC-100FⅡ
| Type | KC-100FⅡ |
| Capacity | 240 cartons/min. |
| Machine Size (unit:mm) |
3,510× 1,474× 1,600(height) |
 |
Product bucket pitch (inch) |
4.5 | 6.0 | 7.5 | 9.0 |
| Maximum capacity (carton/min) |
300 | 300 | 240 | 200 | |
| Lsize(mm) | 20～80 | 40～100 | 50～150 | 90～190 | |
| Wsize(mm) | 15～85 | 15～85 | 15～85 | 15～85 | |
| Hsize(mm) | 100～250 | 100～250 | 100～250 | 100～250 | |
| Machine length(mm) | 3320 | 3415 | 3510 | 3720 | |
| Magazine length(mm) | 1960 | 2055 | 2150 | 2360 |
Special Features
1.Easy access to internal units from the back of the machine and
slide magazine significantly improved operation/changeover/maintenance efficiency.
2.No need for tools for parts change. All-axis automatic change over is optional.
3.Servo direct drive reduced maintenance parts drastically.
4.Carton feeder belt reduced the noise and improved the carton quality.
5.Easy-to-operate interface.
| Product bucket pitch (inch) |
4.5 | 6.0 | 7.5 | 9.0 |
| Maximum capacity (carton/min) |
300 | 300 | 240 | 200 |
| Lsize (mm) |
20～80 | 40～100 | 50～150 | 90～190 |
| Wsize (mm) |
15～85 | 15～85 | 15～85 | 15～85 |
| Hsize (mm) |
100～250 | 100～250 | 100～250 | 100～250 |
| Machine length (mm) |
3320 | 3415 | 3510 | 3720 |
| Magazine length (mm) |
1960 | 2055 | 2150 | 2360 |
Special Features
Easy access to internal units from the back of the machine and slide magazine significantly improved operation/changeover/maintenance efficiency.
No need for tools for parts change. All-axis automatic change over is optional.
Servo direct drive reduced maintenance parts drastically.
Carton feeder belt reduced the noise and improved the carton quality.
Easy-to-operate interface.

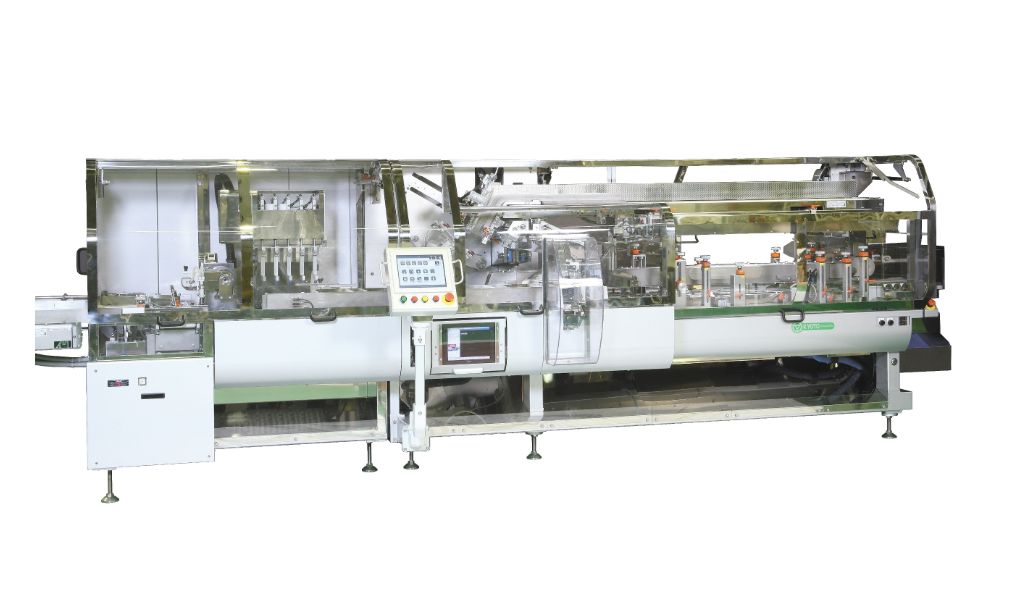

KVC SERIES
Flexible Cartoning Machines can be used for packing vials, amples, rondolations, PTP, syringes and more. The machine forms autobottom/wraparound cartons and loads workpieces using the transfer unit with Kyoto’s unique control system.

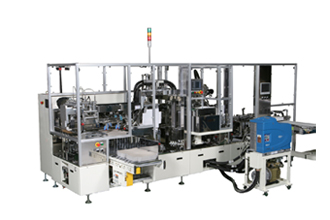

Fou-side Sealed Pouch

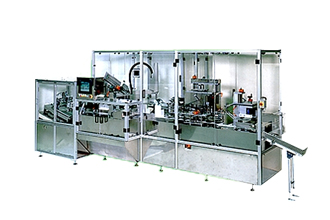

Top Loading Cartoner
Fou-side Sealed Pouch
Top Loading Cartoner
Our specifications are subject to change without notice due to continual improvements.
